| Product Name | Low frequency desktop code writer |
| Model | LFCM01 |
| Protocol Standards | FDX-B (ISO11784/85), 64-bit R/O (EMDID) |
| Working Frequency | 134.2 KHz |
| Support Chip | EM4305, TK4100, GK4100, EM4100 and their compatible chips |
| Recognition Distance | 5CM |
| Interface Rate | 4800 - 115200 (configurable) |
| Operation Method | online |
| Voltage and Current | 4.5V-5.5V (USB power supply) Working current: 100mA Standby current: 20mA |
| Indicator Light | 1 tri-color LED |
| Beep | have |
| Dimensions | 123mm * 88mm* 25mm |
| Weight | 100g |
| Communication Interface | USB |
| Operating System | Windows2000/XP/Vista/WIN 7/WIN8/WIN10 |
| Storage Temperature | -40℃ to 90℃ |
| Operating Temperature | -20℃ to 50℃ |
Product Overview:
LFCM01 desktop code writer is a low-frequency electronic ear tag coding machine developed based on USB2.0 technology. It can support reading and writing coding operations of RFID electronic tags and supports FDX-B data format. The coding machine integrates a radio frequency communication protocol and is used together with our company's supporting coding software to write and code low-frequency electronic ear tags.
LFCM01 desktop code writer is characterized by high performance, stability and good compatibility. It can be used in application fields such as electronic ear tag writing and access control systems for traceability of pigs, cattle, sheep, donkeys and other livestock.

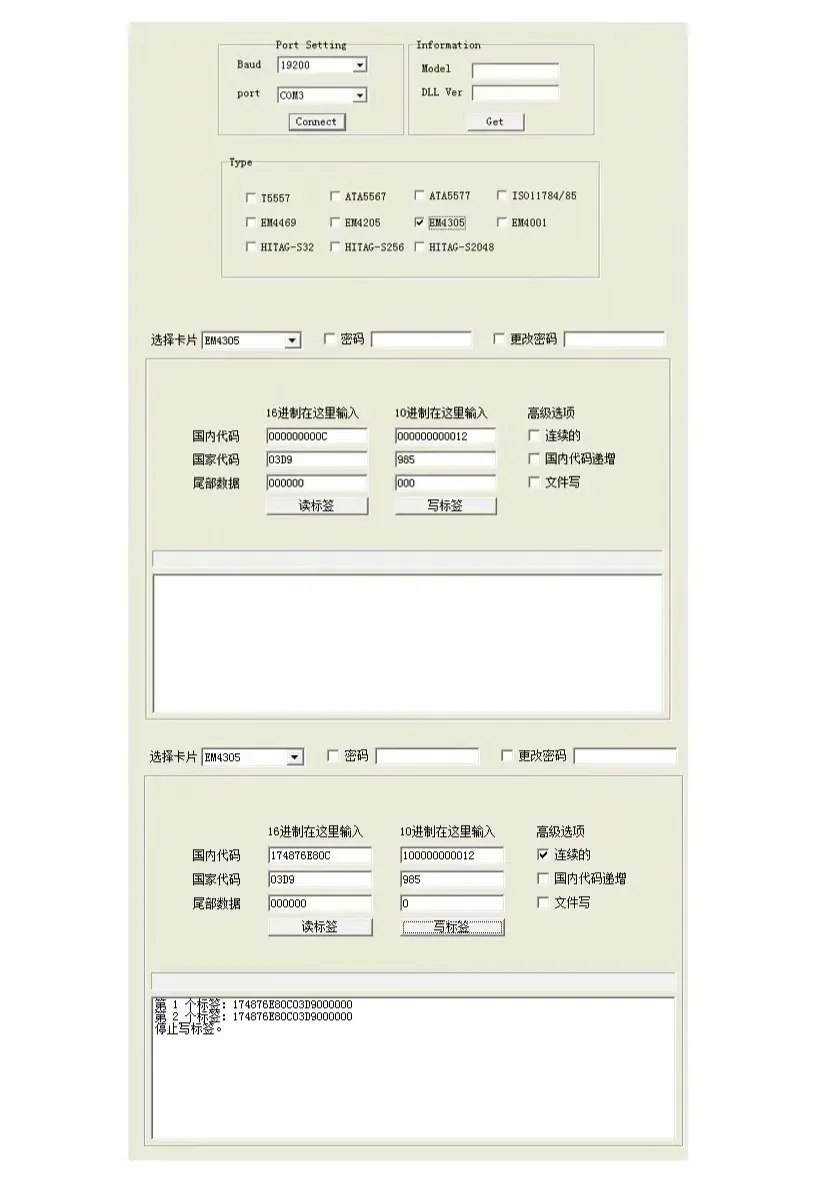

LFCM01 desktop code writer is easy to operate and has fast card reading speed. The DEMO program is very user-friendly, allowing beginners to easily master the coding process. We provide SDK for customers' secondary development to facilitate the rapid integration of this product into applications. We provide rich example programs such as VC, VB, DELPHI, C#, etc., through which development work can be carried out.
Features:
Fast card reading speed and stable performance
Applications:
Pigs, cattle, sheep, donkeys and other livestock traceability electronic ear tag coding, access control systems, etc.
